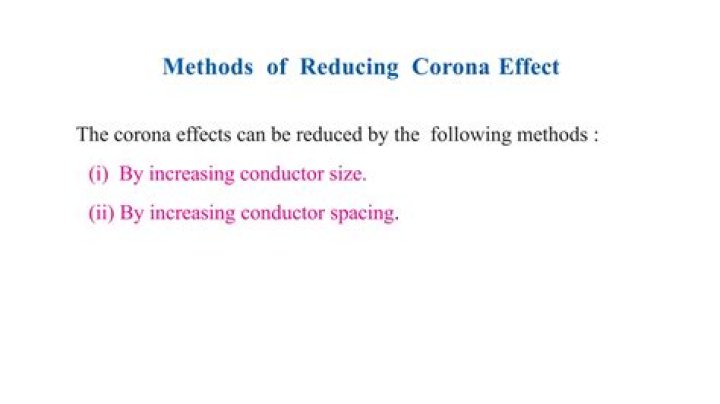

Corona discharge can be reduced by the following methods:

• By increasing the conductor size: As explained above, larger the diameter of the conductor, lesser the corona discharge.
• By increasing the distance between conductors: Larger the conductor spacing, lesser the corona.

What are the possible solution for reducing corona and skin effect in a transmission line?

Increasing the distance between conductors: Increasing conductor spacing decreases the corona effect. Using bundled conductors: Bundled conductors increase the effective diameter of the conductor – hence reducing the corona effect.

What is corona effect in transmission lines?

Corona is a phenomenon associated with all transmission lines. Under certain conditions, the localized electric field near energized components and conductors can produce a tiny electric discharge or corona, that causes the surrounding air molecules to ionize, or undergo a slight localized change of electric charge.

How can we reduce skin effect in transmission lines?

How to reduce the Skin Effect:

1. ACSR bundled conductor is used to reduce the skin effect.
2. Use cable material with less magnetic permeability.
3. Reduce the size of the conductor.
4. Increasing the voltage by reducing the current which decreases the skin effect in the same conductor.

What is corona formula?

En = 1/(√3)×line voltage. Peek’s formula is applicable for decided visual corona. This formula the gives the inaccurate result when the losses are low, and En/Eo is less than 1.8.

What are the factors which affect corona?

There are many factors affecting such corona formation. The investigated factors were the interspacing between the two points, gap length between the point and the plane, ambient temperature, relative humidity, polarity or frequency of the applied voltage, and electrode material.

What is corona and skin effect?

See more1- corona effect is due to the ionization of air and decompozition of fluids ( rain water on line or moisture) and also by any injury on conductor.2- skin effect mostly occurs on solid conductor. As electricity is THE FLOW OF ELECTRONS and the nature of electon is, IT FLOW NEAR the surface.

What is corona loss formula?

Effect of Frequency – The corona loss is directly proportional to system frequency. Effect of Density of Air – The corona loss is inversely proportional to air density factor. Effect of Conductor Radius – If the wire area has high surface area, then their surface field intensity is low, and hence corona loss is less.

What is Corona and skin effect?

In which case the skin effect is more?

The shape of the conductor – Skin effect is more in the solid conductor and less in the stranded conductor because the surface area of the solid conductor is more.

What is SAG formula?

i)Sag calculation when supports are at equal levels: A conductor is in the two equal level supports A and B. O is the lowest point of the conductor. l= length of the span. w= weight per unit of length conductor. T= Tension in the conductor.

What is skin and Ferranti effect?

SKIN EFFECT • The non-uniform distribution of electric current over the surface or skin of the conductor carrying a.c. is called the skin effect. • The concentration of charge is more near the surface as compared to the core of the conductor.

What is skin effect and proximity effect?

Skin effect is the tendency for high-frequency currents to flow on the surface of a conductor. Proximity effect is the tendency for current to flow in other undesirable patterns—loops or concentrated distributions—due to the presence of magnetic fields generated by nearby conductors.

Is skin effect good or bad?

The skin effect is a usually undesirable effect which occurs when using AC signals. It causes the outer surface – the “skin” of the wire – to be used more than the inner surface for carrying current – engineers say the surface has a higher “current density”, or amperes per meter squared.

How is sag value calculated?

Calculation of Sag:

1. Case1: When the conductor supports are at equal level.
2. Sag = WL2/8T.
3. Case2: When the conductor supports are at unequal level.
4. Sag = WtL2/2T.

What is SAG unit?

Sag is defined as the different in level between points of supports and the lowest point on the. conductor. Here AOB is the transmission line conductor. Two supports are at point A and at point B. AB is the horizontal line and from this horizontal line to point O, S is the sag when measured vertically.

What are the limitations of Peek’s formula for calculation of corona loss?

?= air density correction factor. Peek’s formula is applicable to calculate visual corona. This formula gives inaccurate results when power losses are low and Vph/Vdo is less than 1.8 hence Peterson’s formula holds good in some condition.

What is corona effect and skin effect?

“Corona is a discharge caused by electrical over stress.” Skin effect is the tendency of an alternating electric current (AC) to become distributed within a conductor such that the current density is largest near the surface of the conductor, and decreases with greater depths in the conductor.

How is skin effect calculated?

Skin Depth (aka Skin Effect) as a Function of Frequency, Permeability, & Conductivity

1. Most common conductors have a relative permeability of very near 1, so for copper, aluminum, etc., a µ value of 4π* 10-7 H/m can safely be assumed.
2. µ = permeability (4π* 10-7 H/m), note: H = henries = Ω*s.
3. π = pi.
