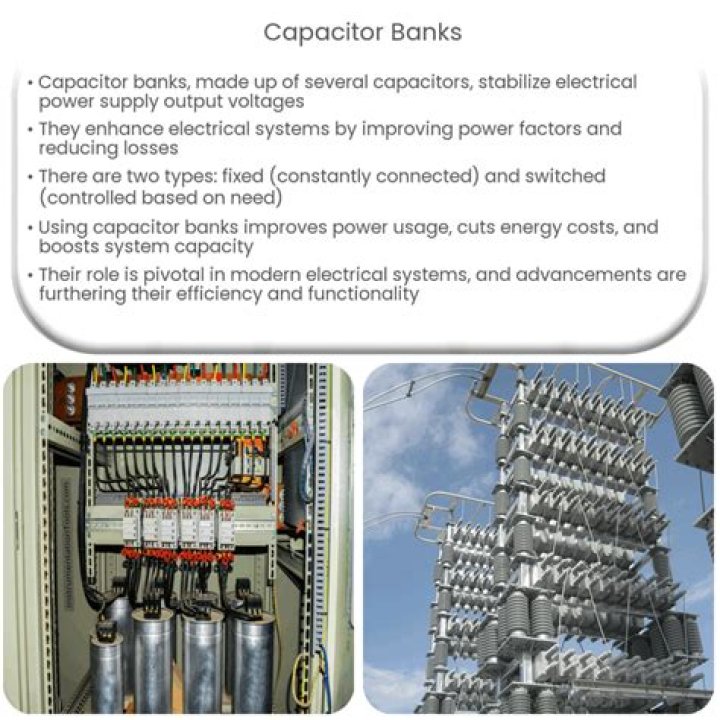

A Capacitor Bank is a group of several capacitors of the same rating that are connected in series or parallel with each other to store electrical energy . The resulting bank is then used to counteract or correct a power factor lag or phase shift in an alternating current (AC) power supply.

How does capacitor bank improve power factor?

Capacitor Banks Improving power factor means reducing the phase difference between voltage and current. They act as a source of local reactive power, and thus less reactive power flows through the line. Capacitor banks reduce the phase difference between the voltage and current.

Why capacitors are used in substations?

Originally Answered: Why are capacitor banks used in sub-stations? Electric Power eTool: Substation Equipment – Capacitor Bank. Capacitors are used to control the level of the voltage supplied to the customer by reducing or eliminating the voltage drop in the system caused by inductive reactance loads.

What is the working principle of a capacitor?

Answer: A capacitor is a device that is used to store charges in an electrical circuit. A capacitor works on the principle that the capacitance of a conductor increases appreciably when an earthed conductor is brought near it. Hence, a capacitor has two plates separated by a distance having equal and opposite charges.

How does a capacitor bank work?

Capacitor Bank is a combination of numerous capacitors of similar rating that are joined in parallel or series with one another to collect electrical energy. The resulting bank is then used to counteract or correct a power factor lag or phase shift in an AC power supply.

What is the correct power factor?

The ideal power factor is unity, or one. Anything less than one means that extra power is required to achieve the actual task at hand. All current flow causes losses both in the supply and distribution system. A load with a power factor of 1.0 results in the most efficient loading of the supply.

What is the benefit of capacitor?

Capacitors provide a voltage boost, which cancels part of the drop caused by system loads. Switched capacitors can regulate voltage on a circuit. If applied properly and controlled, capacitors can significantly improve the performance of distribution circuits.

Why does a capacitor consume 0 power?

In inductors and capacitors, the energy supplied by the source is stored in form of magnetic and electric energy respectively. The energy supplied by source in one half cycle to the inductor or capacitor is fed back to source by the component in next half cycle. So inductor or capacitor consume the net power zero.

How is a capacitor bank used in an AC power supply?

A capacitor bank is a physical group of several capacitors that are of the common specifications are connected in series or parallel with each other to form a capacitor bank that store electrical energy. The capacitor bank so formed is then used to correct a power factor lag or phase shift in an AC (alternative current) power supply.

How does capacitor bank improve reactive power rating?

Connecting the capacitor bank to the grid improves reactive power and hence the power factor. As shown in the figure, capacitors are connected in series to improve the power factor rating. Different materials like paper, mica, etc. are used for the manufacturing of the capacitors as insulating materials.

What happens if a capacitor bank is not tested?

Already installed capacitor banks, if not tested or unmaintained within specific time, becomes incapable of functioning at their finest levels. With time, the operation of capacitors can weaken, decreasing the power factor of your power system, resulting in power factor loss.

How to calculate the QC of a capacitor bank?

Where ‘Qc’ is the required rating of the bank, P is the active power rating of the load, and K is constant. To evaluate the constant a power factor table is followed. From the above table, from the initial and final values of the power factor, constant K is evaluated and the required rating is calculated.
