Physical Layer We now learned that a transport layer converts the data into segments, network layer converts the segments into packets and data link layer converts the packets into frames. A frame is nothing but a sequence of bits such as 1001011.

At what layer of the OSI model is data formatted into packets?

network layer
In the seven-layer OSI model of computer networking, packet strictly refers to a protocol data unit at layer 3, the network layer.

Which layer re encapsulates segments into user data?

transport layer
The transport layer encapsulates the application data into transport protocol data units.

Which layer of the OSI model works with packets?

The network layer uses network addresses (typically Internet Protocol addresses) to route packets to a destination node. The data link layer establishes and terminates a connection between two physically-connected nodes on a network. It breaks up packets into frames and sends them from source to destination.

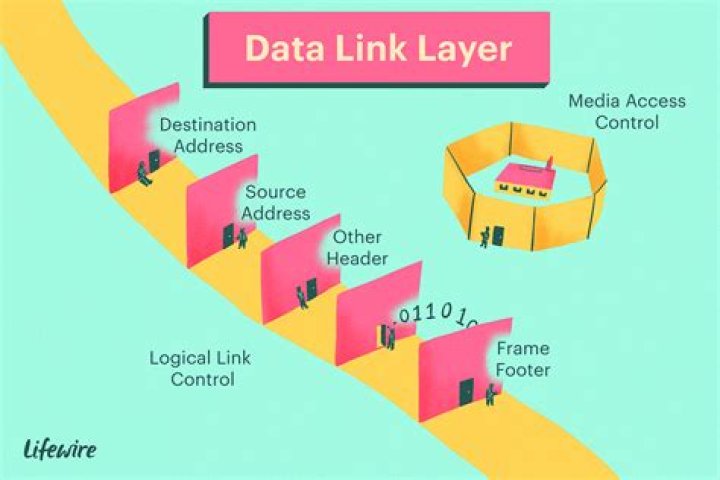

What is Layer 2 data called?

The data link layer is Layer 2 in the Open Systems Interconnection (OSI) architecture model for a set of telecommunication protocols. Data bits are encoded, decoded and organized in the data link layer, before they are transported as frames between two adjacent nodes on the same LAN or WAN.

What are the 7 OSI Model?

The OSI Model Defined In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

What is the PDU at each layer?

The Layer 1 (Physical Layer) PDU is the bit or, more generally, symbol The Layer 2 (Data Link Layer) PDU is the frame. The Layer 3 (Network Layer) PDU is the packet. The Layer 4 (Transport Layer) PDU is the segment for TCP or the datagram for UDP. The Layer 5 (Application Layer) PDU is the data or message.

What is the 7 layers of the OSI model?

In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

Is VPN a Layer 2 or 3?

Difference Table: Layer 2 vs Layer 3 VPN

Is router a Layer 2 device?

If a router can packet switch as well as route, it is a layer 2 and layer 3 device. Same thing as a switch that can do routing. Anything upper layer protocol is going to sit on software and hardware that also function at the lower levels, but routing is done at 3.

Is a router a layer 3 device?

A router works at layer 3 of the OSI Model (Network). It is a device usually located at gateways where networks meet, to connect various local networks and wide networks.

What layer is a router?

Network-Control Layer
Routers operate on the third layer of the OSI Model, the Network-Control Layer.

How do I know if I have TCP or UDP?

Run netstat -an from a Windows command prompt. Download and run TCPView (which also lists UDP) for a GUI view. Run Wireshark. Run nmap against the server with port in question (by default only scans TCP ports)

What is Layer 7 in networking?

Layer 7 of The OSI Model: Application Layer is the OSI layer closest to the end user, which means that both the OSI application layer and the user interact directly with the software application. This layer interacts with software applications that implement a communicating component.
