A set square or triangle (American English) is an object used in engineering and technical drawing, with the aim of providing a straightedge at a right angle or other particular planar angle to a baseline.

What is the tool set square used for?

Square, in measurement, device consisting of two straightedges set at right angles to each other. It is used by carpenters and machinists for checking the correctness of right angles, as a guide when drawing lines on materials before cutting, or for locating holes. The tools shown in the Figure are carpenter’s squares.

What is the meaning of a set square?

British. : a usually plastic or metal device that is shaped like a triangle and used for drawing straight lines and angles.

Why it is called set square?

It may also guide a set square to draw vertical or diagonal lines. Its name comes from its resemblance to the letter T. More commonly the set square bears the markings of a ruler and a half circle protractor. The outer edges are typically bevelled.

What are the two types of set square?

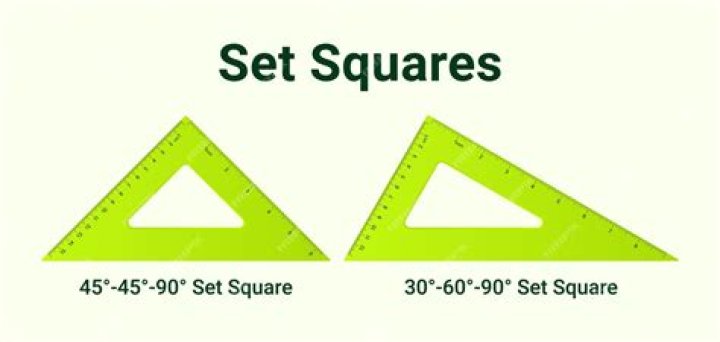

There are two main types of set square. One has an angle of 45 degrees and the other 30/60 degree angles. The 45 degree set square also has a 90 degree angle.

Is try square a measuring tool?

A try- square is a woodworking tool used for marking and measuring a square piece of wood. The square refers to the tool’s primary use of measuring the accuracy of a right angle (90 degree angle); to try a surface is to check its straightness or correspondence to an adjoining surface.

What is a 45 degree set square?

The 45 degree set square also has a 90 degree angle. This can be used for drawing vertical lines. This set square can be used to draw 30, 60 or 90 degrees angles. Set squares are only accurate if they are used along with a T-square.

Why is it called set square?

Its name comes from its resemblance to the letter T. Higher-end table saws are often equipped with T-square fences. There are two main types of set square. These set squares come in two usual forms, both right triangles: one with 90-45-45 degree angles, the other with 30-60-90 degree angles.

How do you set something to square?

If we measure from one corner to the opposite corner diagonally (as shown by the red line), and then compare that distance to the opposite diagonal measurement (as depicted by the blue line), the two distances should match exactly. If they are equal, the assembly is square.

What do you use a set square for?

The set square is one of the most important tools used in making furniture. It is used for marking out right angles before any joint is cut. It can also be used for marking straight lines and checking straight edges. The tool is often used alongside other tools such as the layout knife.

What kind of angles can you draw with a set square?

Set squares are used in conjunction with T-squares to draw accurate angles. There are two main types of set square. One has an angle of 45 degrees and the other 30/60 degree angles. The 45 degree set square also has a 90 degree angle. This can be used for drawing vertical lines.

What kind of markings are on a set square?

More commonly the set square bears the markings of a ruler and a half circle protractor. The outer edges are typically bevelled. These set squares come in two usual forms, both right triangles: one with 90-45-45 degree angles, the other with 30-60-90 degree angles.

Can a ruler be used to draw a set square?

This is indicated by the similar arrows. A ruler and set square can be used to draw parallel lines as described below. Step 1: Position an edge of the set square against a ruler and draw a line along one of the other edges. Step 2: Slide the set square into a new position while keeping the ruler fixed exactly at the same position.
