Double pole light switches, also known as a four-way switch, are two single pole switches put together. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit. A double pole switch can be used to control light and a fan or 2 lights on separate circuits.

What is the difference between DP and SP sockets?

DP = double pole = makes/breaks both phase and neutral. SP = single pole = makes/breaks phase only. There is no requirement to use double pole sockets but they don’t cost much more and because they break both P+N they can isolate an appliance totally without the need for the plug to be removed.

Can you mix single and double pole sockets?

Hager. Yes you can, single pole will only switch the live but double pole will switch the live and neutral. It won’t make any difference when it comes to replacing/wiring them up.

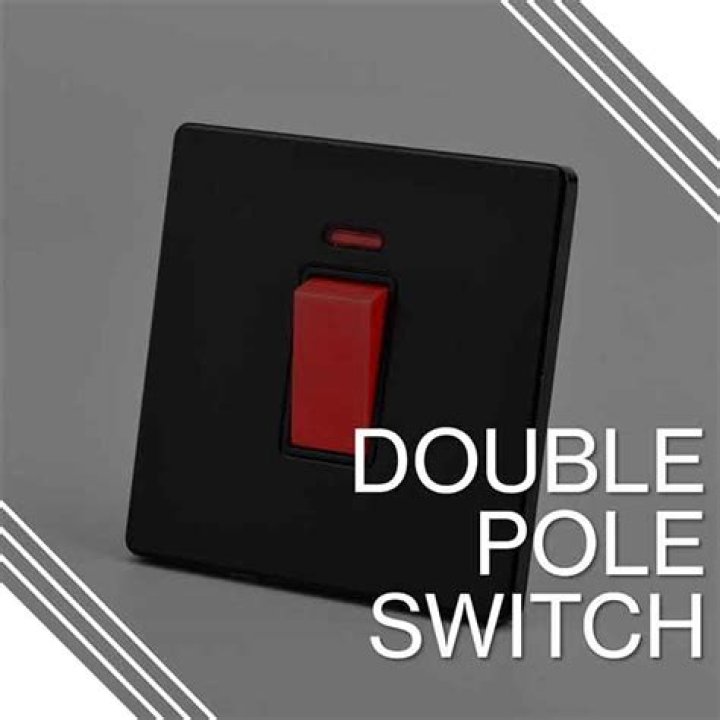

Where would you use a double pole switch?

Double pole light switches are essentially two single pole switches put together. They are typically used to control a circuit that needs complete isolation from the supply for safe maintenance, such as fans or cookers/ovens.

Do I need single pole or double pole sockets?

Whilst a single pole socket is generally cheaper it is always preferred that customers/electricians install double pole sockets for safer isolation of the plugged in appliances.

Can a single pole switch control two lights?

A single light switch that controls two fixtures, such as two lights or a light and a bathroom or ceiling fan, can be converted to a double light switch that allows you to operate each fixture independently. You’ll need a screwdriver, a pair of wire strippers, a double switch plate and a voltage tester.

What’s the difference between single pole and double pole contactors?

Single-Pole And Double-Pole Contactors. Contactors are nothing more than a coil and a set of contacts. The coil of the contactor can be 24, 115, or 230 V, and even higher depending on the application. The contactor arrangement can be single pole, double pole, or triple pole, depending on the phase and application.

Which is better single pole or double pole switch?

The wires that feed electricity to double pole switches tend to be larger than the wires that feed to single pole switches, as double pole switches are often used to control 240V circuits. Double pole switches make it possible to isolate appliances safely. They tend to be used for appliances with heavy loads like cookers and showers.

How is a double pole circuit breaker wired?

How they’re wired: Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

How are two hot wires connected in a double pole switch?

The live hot wire, which is usually black, connects to one terminal, the outgoing hot wire connects to the other one and when the switch is off, the circuit is broken. Because it controls a circuit with two hot wires, a double-pole switch has two sets of brass terminals and a ground screw.
